Products
Polystyrene Slab Blocks
Polystyrene Slab Blocks
Polystyrene Slab Blocks
.png/:/cr=t:29.03%25,l:14.19%25,w:73.53%25,h:55.15%25/rs=w:388,h:388,cg:true,m)
Slab Block Sizes
- 170mm Slab- 120mm block
- 200mm Slab- 150mm block
- 255mm Slab- 195mm block
- 340mm Slab- 280mm block
Dimensions
- L: 1225mm W: 450mm H: 120mm
- L: 1225mm W: 450mm H: 150mm
- L: 1225mm W: 450mm H: 195mm
- L: 1225mm W: 450mm H: 280mm
Concrete Slab Blocks
Polystyrene Slab Blocks
Polystyrene Slab Blocks
.png/:/cr=t:5.98%25,l:0%25,w:100%25,h:75%25/rs=w:388,h:388,cg:true)
Slab Block Sizes
- Tray (16kg)
- 170mm Slab - E120 block (17kg)
- 200mm Slab - E150 block (17kg)
- 255mm Slab- E195 block (20kg)
- 340mm Slab- E285 block (32 kg)
Dimensions
- L: 200mm W: 450mm H: 70mm
- L: 200mm W: 450mm H: 120mm
- L: 200mm W: 450mm H: 150mm
- L: 200mm W: 450mm H: 195mm
- L: 200mm W: 450mm H: 285mm
Pre- Stressed Ribs
Polystyrene Slab Blocks
Pre- Stressed Ribs
.png/:/cr=t:0.5%25,l:11.21%25,w:76.92%25,h:76.92%25/rs=w:388,h:388,cg:true,m)
The conventional system for suspended slabs, propping required every 1.2m. Used with either concrete slab blocks or polystyrene slab blocks.
- Manufactured to required length.
- (5 wire) 0.8- 4.5m
- (7 wire) 4.6- 5.8m
- (8 wire) 5.9- 6.8m
- (9 wire) 6.9- 8.0m
- (10 wire) 8.1- 9.9m
- Mass 23kg/m- 28kg/m

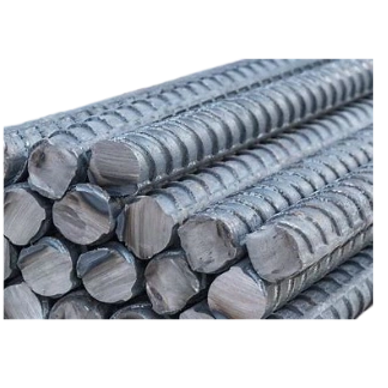

Reinforcing Steel
Reinforcing Steel
Pre- Stressed Ribs
.png/:/cr=t:10.76%25,l:18.66%25,w:64.94%25,h:64.94%25/rs=w:388,cg:true,m)
Y 10, Y12, Y16, Y20
Additional steel for beams and staircases can be supplied when a bending schedule is provided.
Reinforcing Mesh
Reinforcing Steel
Reinforcing Mesh
Mesh ref 100
Mesh ref 193
